Summary.

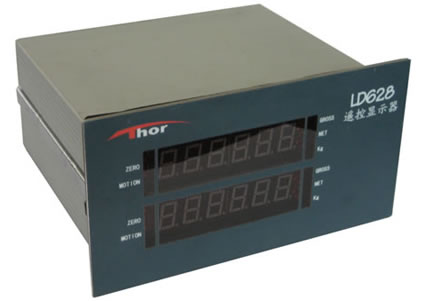

LD628 remote display can be used as second weight display, by receiving the data of weigh82ing display controller, used in the second weight indicator. Connecting through RS232, RS422, 20mA current loop or SIF interface and the Japanese UNIPULSE, Japan AD, METTLER TOLEDO - United States,and a variety of weighing display controller of our company,the LD688 remote display display the weight, total number of packages or accumulative weight information (depending on the weighing display controller to send data ). The LD688 can receive most of two weighing display controller weight data.
For example: LD628 remote display is mainly used in the packing scale packaging ( packaging weighing instrument scene in the control room ).
Characteristic.
Two 7 vacuum fluorescent display section code;
The cabinet structure, easy to install and use;
RS232, RS422, 20mA current loop or SIF multiple serial interface;
Display weight, number of packages or accumulative weight information (depending on the weighing display controller to send data ).
Technical specifications:
Display: two 7 vacuum fluorescent display ( high 13mm code word ). On display showing the weight, under display showing total weight, number of packages or accumulative weight information.
Serial interface COM1: types RS232, RS422, 20mA current loop or SIF multiple serial interface.
Baud rate: 300, 600, 1200, 2400, 4800 or 9600.
Data bits: 1 start bit, 7 bits or 8 data bit, 1 stop bit.
Serial interface COM2: types RS232, RS422, 20mA current loop or SIF multiple serial interface.
Baud rate: 300, 600, 1200, 2400, 4800 or 9600.
Data bits: 1 start bit, 7 bits or 8 data bit, 1 stop bit.
Note: the maximum recommended cable length is as follows:
RS232 15 meters
RS422 600 meters
20mA 300 meters
Power: 220VAC ( 15% ~ 10% ), power up to 4 watts.
The use of the environment: the temperature -10℃～+40℃；
Humidity is 10～90％ no condensation.
Storage environment: temperature of -40℃～+60℃
Humidity is 10 ~ 95% no condensation.
Size: shell size 194mm ( width) x 98mm ( high ) x 185mm ( deep ).
Mounting dimensions: 187 ( 0 ~ 1 ) mm x 93 ( - 0 ~ 1 ) mm.
Preliminary test:
Open the packing box, according to the random and accessary packing list view components are complete. If there is a lack of parts or components damage, please contact with the company, in order to obtain properly processing.
Make sure each part intact after the instrument from inside the box is taken out, then the installation and wiring.
Installation guide:
According to the installation requirements in the control cabinet open rectangular holes.
Remove left inserting plate fixed by two screws, and remove the left inserting plate.
The instrument from outside is inserted into the opening of the control cabinet.
Back of the instrument to fit around the flapper, and tighten the two screws.
Serial interface COM1:
LD628 remote display serial port COM1 including RS232, RS422, 20mA current loop and SIF multiple serial interface. Serial port COM1 is used to receive the first weighing display controller weight data. COM1 connector for 9 core type D-SUB male plug. 9 core type D-SUB male plug pin position and function are as follows.
Pin number Signal Explain
1 SHLD Chassis ground
2 TXD RS232 sending end
3 RXD RS232 eceiving terminal
4 20mA + / SIF The current loop of 20mA / SIF receiver is receiving end
5 GND Grounding terminal
6 20mA / SIF The current loop of 20mA negative receiver / SIF receiving terminal
7 RS422-A Send / receive + RS422
8
LD628 remote display serial port COM2 including RS232, RS422, 20mA current loop and SIF multiple serial interface. Serial port COM2 to receive second weighing display controller weight data. COM2 connector for 9 core type D-SUB male plug. 9 core D-SUB type plug pin position and function are as follows.
Pin number Signal Explain
1 SHLD Chassis ground
2 TXD RS232 sending end
3 RXD RS232 receiving terminal
4 20mA + / SIF The current loop of 20mA / SIF receiver is receiving end
5 GND Grounding terminal
6 20mA / SIF The current loop of 20mA negative receiver / SIF receiving terminal
7 RS422-A Send / receive + RS422
8
Power cord.
Connector is 3 pin type COMBICON socket.The 1, the 2 foot access 220V AC,the 3 pin is grounding .
|
