Product Code:
Product Name: elevated position Palletizing
Memo:
Product Category: Automatic Palletizer unit
Product Description:

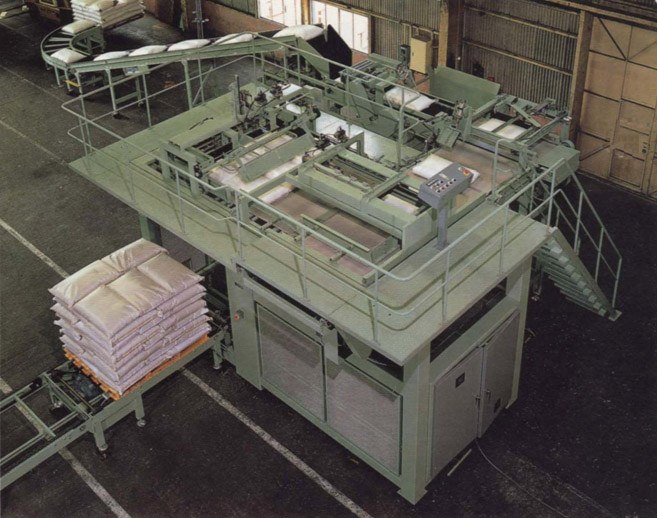

Mainly by the high Palletizer conveyor slope, flattening conveyor, conveyor slow stop, turn-bit machine, grouping machines, pushing bags pressure bags machine, hierarchical machines, lifts, pallet storage, pallet conveyor, stack tray conveyor , elevated platforms and other components. The structural design is optimization, the action is smooth and reliable. Stacking process is completely automatic, normal operation without human intervention. High Palletizer tray in the stacking process is moved up and down for high-volume production needs.
|
Specification
|
Palletizing speed bag / h
|
Tray in the form
|
Tray Sizemm
|
Nm3/h
TotalConsumptionNm3/h
|
Kw
Total powerKw
|
|
5LS-G600
|
600
|
Plastic, steel or wood
|
1400*1200*150
|
30
|
20
|
|
5LS-G800
|
800
|
Plastic, steel or wood
|
1400*1200*150
|
40
|
25
|
|
5LS-G1000
|
1000
|
Plastic, steel or wood
|
1400*1200*150
|
45
|
25
|
|
5LS-G1200
|
1200
|
Plastic, steel or wood
|
1400*1200*150
|
45
|
27
|
|
5LS-G1400
|
1400
|
Plastic, steel or wood
|
1400*1200*150
|
50
|
27
|
|
5LS-G1600
|
1600
|
Plastic, steel or wood
|
1400*1200*150
|
50
|
30
|
|
5LS-G1800
|
1800
|
Plastic, steel or wood
|
1400*1200*150
|
55
|
30
|
|
5LS-G2000
|
2000
|
Plastic, steel or wood
|
1400*1200*150
|
60
|
35
|
|
5LS-G2400
|
2400
|
Plastic, steel or wood
|
1400*1200*150
|
60
|
35
|
|
|
|
|
|
