DCS liquid filling scale is an automatic quantitative measurement equipment, its function is to make large amounts of bulk liquid automatic material into a predetermined weight of small load, to quantitative pack in containers.
Liquid filling scale is high degree of automation,it can avoid material overflow, maximize prevent material itself to pollute the environment, thus for the workers' protection. The system is stable and reliable, simple operation, accurate weighing, the weight data available through the instrument output to the computer and other external equipment.
Our company combines domestic and international various filling scale ( machine ) advantages, using the reliable parts, development and production of various liquid filling system,.It can be used to trade approved a variety of containers, drums or plastic barrels, in 10kg to 300kg accurate quantitative filling.At the same time the system in wet, dangerous or other adverse environments the use of.

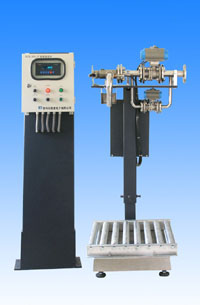

DCS-300-JY liquid filling scale
The scale is a semi-automatic liquid filling scale, the scale used on the surface filling, for no foam or mild foam material. Unique design of the gun is easy to operate, filling fast, accurate.
◎ Weight Range: 100 ~ 300kg
◎ Material Interface: DN40 material inlet pressure <0.6MPa
◎ Filling speed: 1 to 2 barrels (200L) / minute (diameter 1.5 ", the material flow to ensure 280L/min)
◎ Filling accuracy: 0.2
◎ gun structure: access to the material part of the material for the 316,316 L stainless steel, and the rest of the material is 304 stainless steel, carbon steel, etc.
◎ Air: pressure 0.5 ± 0.1Mp, consumption of 10m3 / h, quick connector 8 mm endotracheal
◎ Power supply: 220 (-15% ~ +10%) VAC, 50Hz
◎ simple operation, easy to install
|
