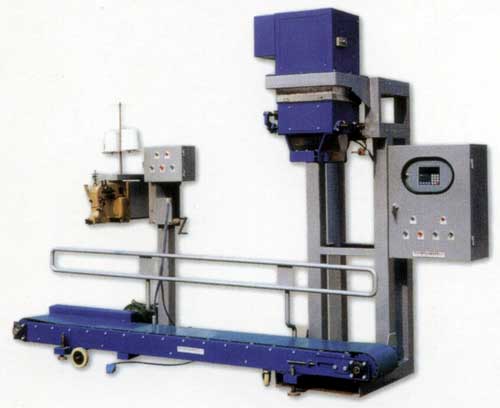

GW-style and free-fall material packing scale is packing for granular, powder and other good liquidity, modest proportion materials.It is simple structure, easy installation, low production costs. It is the preferred products of automatic packaging for SME.
The typical materials can be packed by GW-style, free-fall material packing scale is similar to net-type, free-fall material packing scale, there are:
A. Chemical, fertilizer industry
1) fertilizers: granular potassium chloride, potassium sulfate particles, organic fertilizer, BB fertilizer and so on.
2) Petroleum and Chemical: POM, have been within the acid ammonium.
3) Fiber: polyester long, short wire, acrylic.
4) dyes: Textile dyes, printing dyes, inks.
5) Other chemicals: carbon black particles, chemical salt, soda ash.
B. Port
1) bulk cargo package: food, chemicals, aluminum powder, feed. Like
2) ore, coal categories: transportation of materials and process measurement.
3) Food: scattered into the shed, transport materials and process measurement.
C. Pharmaceutical industry
1) The finished product packaging.
2) Pharmaceutical processing process control.
D. Grain, feed, bio-engineering
1) grain and oil processing: oil crops as raw materials for oil processing (such as soybean meal, soybean, rapeseed, etc.), flour, rice packaging.
2) fish feed livestock and poultry packaging.
The drawback of GW-style and free-fall material packing scale is packaging slower , packaging capacity requirements apply only to situations of low.
|
Model
|
DCS-50GSA
|
|
Packaging efficiency(bags / hour)
|
200～400
|
|
Weighing range (kg / pack)
|
20～100
|
|
Precision
|
X(0.2)
|
|
Power supply
|
4.0kw
|
|
Power
|
0.7kw
|
|
Compressed air pressure
|
≥0.6MPa
|
|
Compressed air consumption
|
80 (l / min)
|
|
Working environment
|
-10℃～+65℃
|
|
